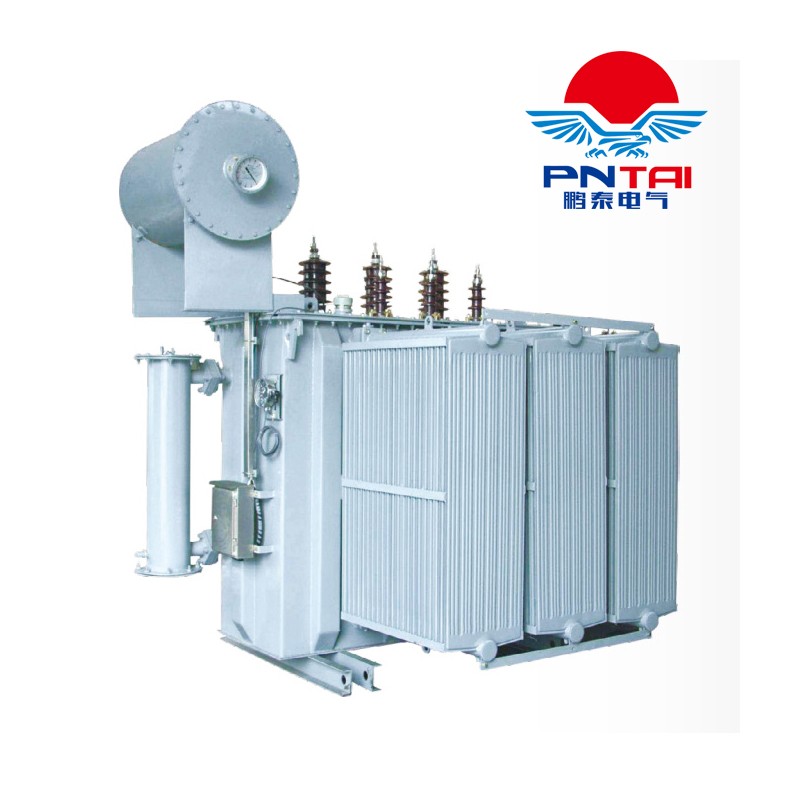

35kV-12500KVA Power Transformer

Beautiful shape, advanced technology, reliable operation, is the ideal equipment for factories, rural and urban transmission network center

Product overviewProduct overview

35kVseries power transformer is more advanced in design,in Materials,structure and process have been greatly improved and improved..High and low pressure clamps are made of steel straps or upper and side beamstight,form a solid frame structure,Enhanced core clamping force and transport shock resistance.Strong resistance to short circuit,Beautiful appearance,reliable operation,loss,small noise,reachedAdvanced level of similar foreign products.

the company's production35kVTransformer Prototype Passed the Sudden Short Circuit Test of National Transformer Testing Center at One Time,The high and low voltage coils are provided with longitudinal oil passages to facilitate heat dissipation.,can be significantly reducedLow copper-oil temperature difference and the hottest spot temperature rise inside the coil.

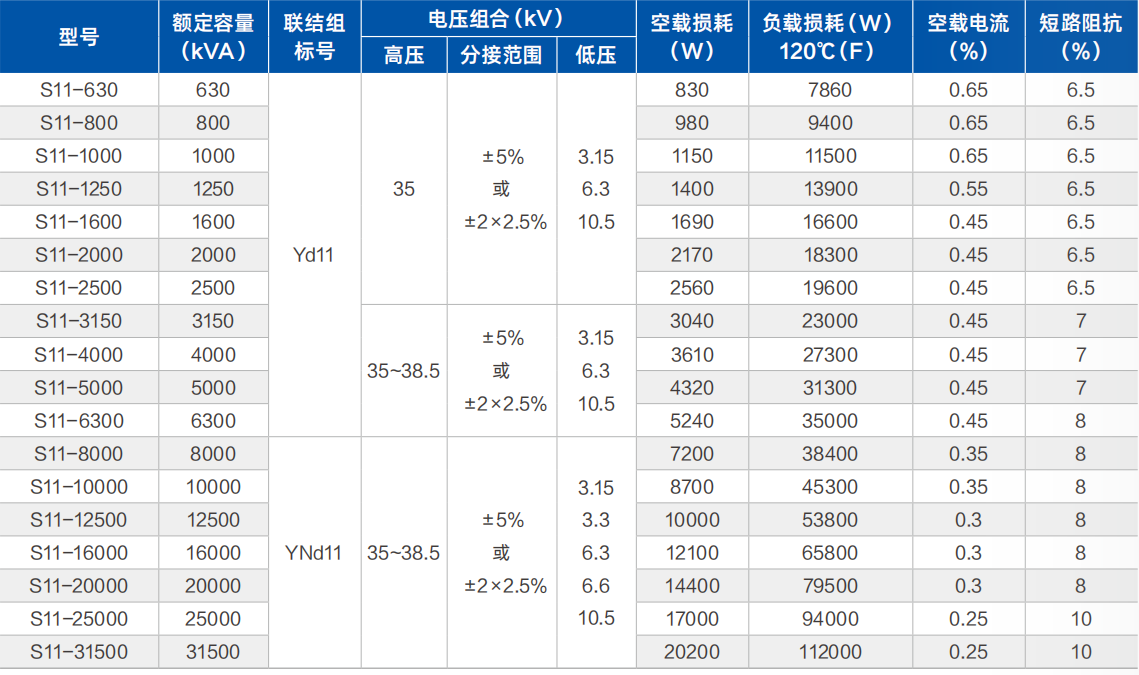

technical parametersTechnical parameter
