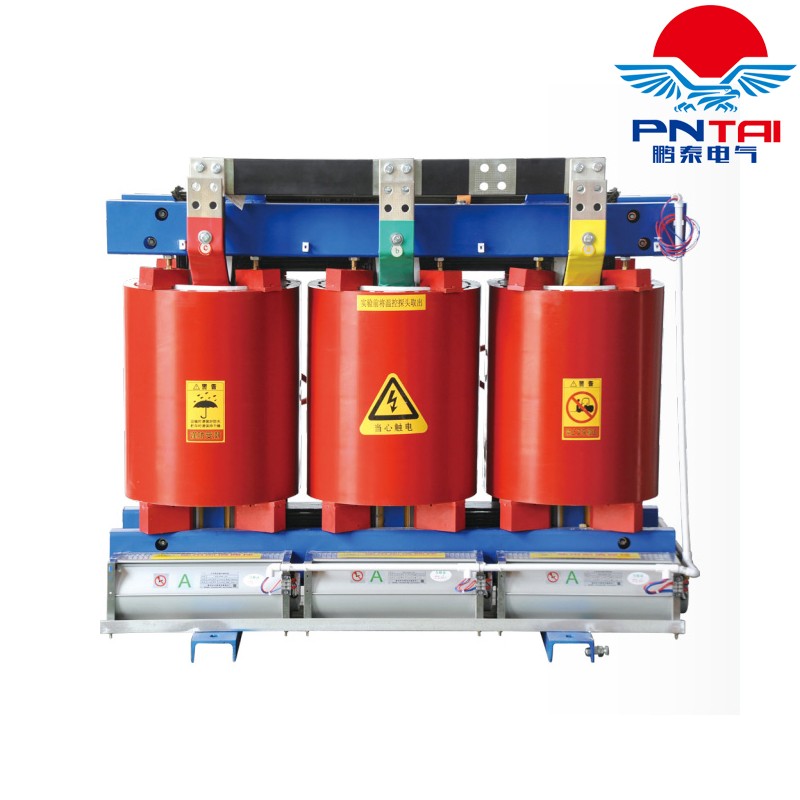

SC(B)H15 type amorphous alloy dry-type transformer

Energy saving and environmental protection, lower loss

Product FeaturesProduct features

loss:Core made of amorphous alloy material,No-load loss and low no-load current,equivalent to silicon steel sheet30%.amorphous alloy dry-type transformerGB/T10228Depletion of specified value75%,can greatly reduce operating costs,Significant energy saving effect.

strong corrosion resistance:amorphous alloy iron core is fully encapsulated by resin and high temperature resistant silica gel,can effectively prevent corrosion and amorphous alloy fragments from falling off,to effectively protect the core and coil.

noise:To reduce product operating noise,Selecting Reasonable Working Magnetic Flux Density in Product Design,Improve the structure of iron core and coil in product processing,using special noise reduction materials and processes,products is lower than the national standardGB/T10088Requirement approx.5-15decibels.

Strong resistance to short circuit:The product adopts three-phase three-column structure,iron core and coil is compact and reasonable.company is the first in China to pass the sudden short circuit test..

Bureau lowered:due to the use of epoxy resin vacuum casting,products,Long service life,Strong heat dissipation ability,in air-cooled conditions can be150 percentRated load operation.products provides reliable guarantee for the safe operation of amorphous alloy dry-type transformers.

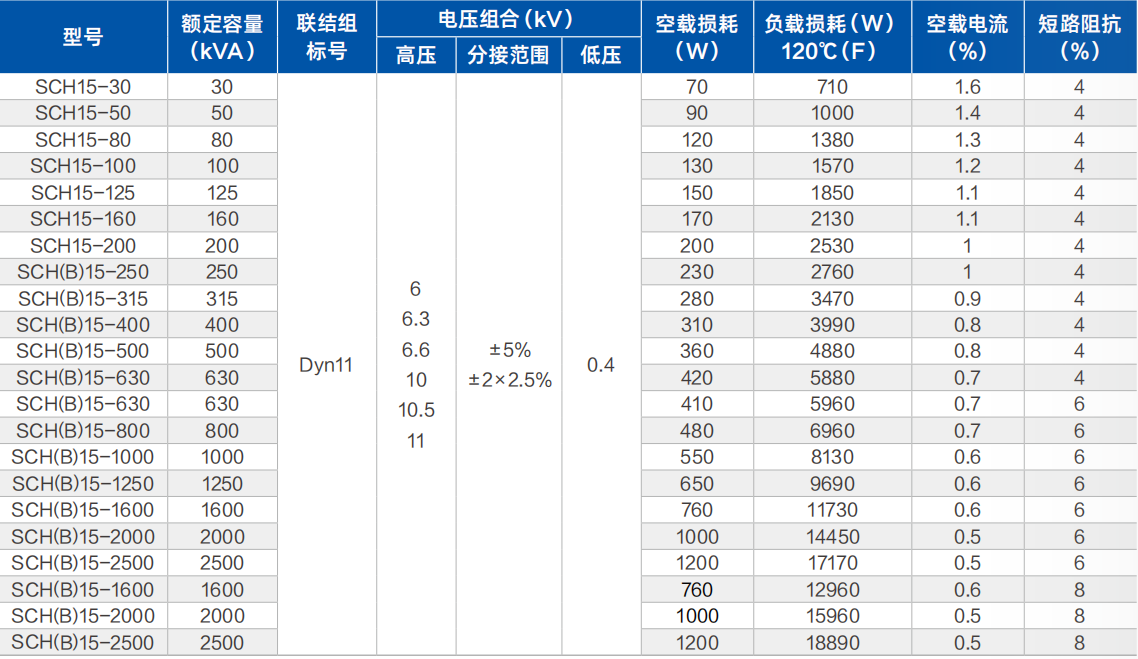

technical parametersTechnical parameter
